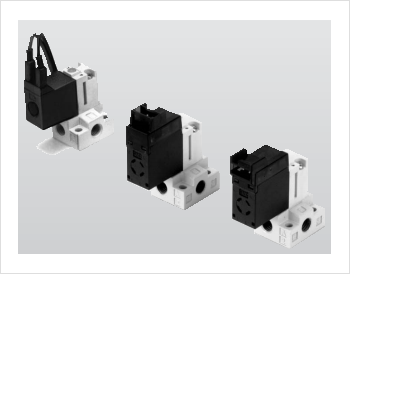

3 Port Solenoid Valve Series VQ100
Outstandingly high speed, stable response, and long service life.
ON: 3.5 ms, OFF: 2 ms, Dispension accuracy 1 ms (With light/surge voltage suppressor; supply pressure 0.5 MPa) 200 million cycles or more (Factors determined in a life test by SMC)
Compact yet provides a large flow capacity
Body width: 9.8 mm
C: 0.055 dm3/(s·bar)(Standard, high pressure type)
C: 0.14 dm3/(s·bar) (Large flow type)
Option
External non-leak
Latching
Negative COM
AC
Normally open
Vacuum
How to Order Valves
Component Parts
| No. | Description | Material |
| 1 |
Solenoid coil |
— |
| 2 |
Body |
Resin |
| 3 | Fixed iron core | Stainless steel |
| 4 | Movable iron core assembly | Stainless steel, Resin |
| 5 | Return spring | Stainless steel |
| 6 | Poppet | NBR |
| 7 | Round head combination screw | Carbon steel |
| 8 | Interface gasket | NBR |
Replacement Parts
| No. | Description | Material | Part no. |
| 9 | Sub-plate | ZDC | AXT662-1-12 (1: M5, 2: M3) |
